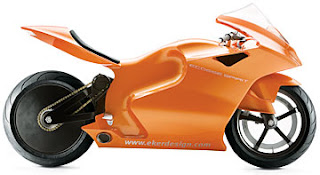

Motor Ecosse Spirit ES1 memiliki chassis tanpa bingkai dengan desain suspensi unik di kedua ujungnya. Suspensi depan dan belakang menggunakan pegas torsi yang dipasang pada pivot swingarm dan peredam spec F1 yang dipasang langsung antara swingarm dan mesin.
Berikut spesifikasi lengkap untuk motor yang mampu melesat hingga 370.1 km/jam ini:
General information
Model: Ecosse Spirit ES1
Year: 2011
Category: Sport
Engine and transmission
Displacement: 1000.00 ccm (61.02 cubic inches)
Engine type: V4, four-stroke
Engine details: IL4 race engine
Power: 200.00 HP (146.0 kW))
Torque: 189.84 Nm (19.4 kgf-m or 140.0 ft.lbs)
Top speed: 370.1 km/h (230.0 mph)
Bore x stroke: 108.0 x 108.0 mm (4.3 x 4.3 inches)
Gearbox: 6-speed
Transmission type,
final drive: Chain
Emission details: Low CO2 Emissions
Chassis, suspension, brakes and wheels
Frame type: Frameless design with carbon fiber front and rear suspension. Torsion bar springs and F1 spec dampers.
Front tyre dimensions: 120/70-ZR17
Rear tyre dimensions: 190/70-ZR17
Front brakes: Double disc
Rear brakes: Single disc
Physical measures and capacities
Dry weight: 120.2 kg (265.0 pounds)
Power/weight ratio: 1.6639 HP/kg
Wheelbase: 1,420 mm (55.9 inches)
Other specifications
Starter: Electric
Color options: Orange
Comments: Limited edition of 10 bikes available worldwide. Price not decided, but extremely expensive according to Ecosse.
